ui.List¶

Overview¶

These components allow users to select between various options, supporting single or multiple selection, and can be displayed as either a regular list, or as a dropdown list. ONSELECTIONCHANGED event are then triggered for any selection changes.

Example¶

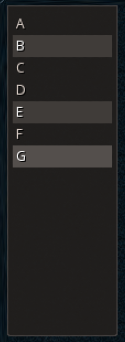

A multiple selection list with entries B and E selected, and the cursor over the G entry

Multiple Selection list

-- Callback for selection events
local selectionChangeReportPrint = function(component, entryID, selected)
        if selected == 1 then
            log("Selected entry", entryID)
        else
            log("Deselected entry", entryID)
        end

        log("Selection is now")
        for k, v in pairs(component.selectedEntries) do
            log(formatStr("[{}] = {}", k, v))
        end
    end

-- Regular multi-selection list
local list = ui.List.new(container, categoryID, 1)
list:SetSize(100, 300)
list.stylesheetID = list_style

-- Force this to be a regular list, even if the previous style defines it to be a dropdown
list.dropdownMaxVisibleEntries = 0

list.maxSelected = 3
list:Subscribe(ui.Hook.ONSELECTIONCHANGED, selectionChangeReportPrint)

local entries = { "A", "B", "C", "D", "E", "F", "G" }

for i,v in ipairs(entries) do
    list:Add(v, i)
end
-- Or list:SetEntries(entries)

Two dropdown lists, with the second one active and displaying its contents

Dropdown Lists

-- Basic Dropdown
local dropdownList = ui.List.new(container, categoryID)
dropdownList:SetPos(0, 0)
dropdownList:SetSize(100, 50)
dropdownList.stylesheetID = list_style
dropdownList.dropdownMaxVisibleEntries = 3
dropdownList:Subscribe(ui.Hook.ONSELECTIONCHANGED, selectionChangeReportPrint)
dropdownList:SetEntries(entries)

-- Can also be explicit about IDs on entries
local dropdownList = ui.List.new(container, categoryID)
dropdownList:SetPos(0, 60)
dropdownList:SetSize(100, 50)
dropdownList.stylesheetID = list_style
dropdownList.dropdownMaxVisibleEntries = 3
dropdownList:Subscribe(ui.Hook.ONSELECTIONCHANGED, selectionChangeReportPrint)
dropdownList:SetEntries({ A = 10, B = 20, C = 30, D = 40 }, 30)

List Entry¶

In most cases, entries must be modified through methods on the list itself, however you can also iterate through the list contents via the entries property, which returns a collection of entries. These are fairly limited and mostly provide an easy way to read the various properties for the various entries.

Property	Type	Description
text	String	The label for this entry.
id	Int	(Read-only) The value for this entry.
enabled	Bool	(Read-only) Whether this entry can be selected.
visible	Bool	(Read-only) Whether this entry is currently hidden.
selected	Bool	(Read-only) Whether this entry is currently selected.

Methods¶

Constructor¶

function ui.List.new(parent : ui.ComponentCollection, categoryID : Int?, dynamicID : Int?) -> List

Creates a new list on the specified parent.

Warning

Creating a component can fail if there's already a component on that parent with the same category ID and dynamic ID, or if those are omitted and the application is unable to generate a valid ID for the component.

Parameter	Type	Description
parent	ui.ComponentCollection	Parent component to create this list in.
categoryID	Int?	Category ID used to identify this component. Defaults to the parent's category ID if not specified.
dynamicID	Int?	Dynamic ID used to identify this component. Defaults to auto-incrementing from the parent's dynamic ID if not specified.

Returns	Description
List	The newly created list. The caller must set its layout and visual information afterwards.

Add¶

function ui.List:Add(label : String, id : Int) -> Bool

Adds an entry to this list with the provided label and ID.

Warning

Entry IDs are expected to be unique, if the provided ID is already used by another entry, this function will fail and return false.

Parameter	Type	Description
label	String	The text to display for this entry.
id	Int	Unique value used to identify this entry.

Returns	Description
Bool	True if the entry was added successfully, false otherwise. This function can fail and return false due to the provided ID already existing.

SetEntries¶

function ui.List:SetEntries(entries : [String], selectedID : Int?) -> Bool
function ui.List:SetEntries(entriesMap : { String -> Int }, selectedID : Int?) -> Bool

Clears existing entries from the list and adds all entries in the provided container to the list, optionally selecting the one with the provided ID.

Warning

Entry IDs are expected to be unique, if the provided ID is already used by another entry, this function will fail and return false.

Parameter	Type	Description
entries	`[String]`	Array of entry names to add to this list. Their respective IDs are autogenerated using an auto-incrementing integer.
entriesMap	`{ String -> Int }`	Table containing a mapping between entry names and their IDs to add to the list.
selectedID	Int?	ID for the entry to be selected afterwards. If this is an invalid ID or not specified, the first entry will be selected instead for lists that always require at least one selected entry (dropdowns for example).

Returns	Description
Bool	True if the provided entries were valid and were successfully added to the list, false otherwise. This function can fail and return false due to the provided ID already existing, or due to invalid/malformed data.

Clear¶

function ui.List:Clear()

Removes all entries from this list.

UnselectAll¶

function ui.List:UnselectAll()

Deselects all currently selected entries in a multiple selection list (defined via the maxSelected property).
Does nothing for single selection lists.

SetEntryEnabled¶

function ui.List:SetEntryEnabled(id : Int, enabled : Bool) -> Bool

Sets whether or not the entry associated with the provided ID is enabled and can be selected.

Parameter	Type	Description
id	Int	Numeric value associated with the entry to modify.
enabled	Bool	Whether or not the entry should be enabled and selectable.

Returns	Description
Bool	True if there was an entry corresponding to the provided ID, false otherwise.

SetEntryVisible¶

function ui.List:SetEntryVisible(id : Int, visible : Bool) -> Bool

Sets whether or not the entry associated with the provided ID is visible to the user.

Parameter	Type	Description
id	Int	Numeric value associated with the entry to modify.
visible	Bool	Whether or not the entry should be enabled visible to the user.

Returns	Description
Bool	True if there was an entry corresponding to the provided ID, false otherwise.

SetEntrySelected¶

function ui.List:SetEntrySelected(id : Int, selected : Bool, triggerEvents : Bool?) -> Bool

Sets whether or not the entry associated with the provided ID is selected, and optionally triggers the corresponding ONSELECTIONCHANGED events.

Parameter	Type	Description
id	Int	Numeric value associated with the entry to modify.
selected	Bool	Whether or not the entry should be selected.
triggerEvents	Bool?	Whether or not to emit `ONSELECTIONCHANGED` events for this change. Defaults to false.

Returns	Description
Bool	True if there was an entry corresponding to the provided ID, false otherwise.

SetEntryIcon¶

function ui.List:SetEntryIcon(id : Int, spriteID : Int) -> Bool

Sets the icon for the entry associated with the provided ID.

Parameter	Type	Description
id	Int	Numeric value associated with the entry to modify.
spriteID	Int	Numeric ID associated with the sprite to use as an icon for this entry.

Returns	Description
Bool	True if there was an entry corresponding to the provided ID, false otherwise.

GetEntryEnabled¶

function ui.List:GetEntryEnabled(id : Int) -> Bool

Returns whether or not the entry associated with the provided ID is enabled and selectable.

Parameter	Type	Description
id	Int	Numeric value associated with the entry to access.

Returns	Description
Bool	True if there was an entry corresponding to the provided ID and it was enabled, false otherwise.

GetEntryVisible¶

function ui.List:GetEntryVisible(id : Int) -> Bool

Returns whether or not the entry associated with the provided ID is visible to the user.

Parameter	Type	Description
id	Int	Numeric value associated with the entry to access.

Returns	Description
Bool	True if there was an entry corresponding to the provided ID and it was visible, false otherwise.

GetEntrySelected¶

function ui.List:GetEntrySelected(id : Int) -> Bool

Returns whether or not the entry associated with the provided ID is selected.

Parameter	Type	Description
id	Int	Numeric value associated with the entry to access.

Returns	Description
Bool	True if there was an entry corresponding to the provided ID and it was selected, false otherwise.

HasEntry¶

function ui.List:HasEntry(id : Int) -> Bool

Returns whether or not there's an entry associated with the provided ID.

Parameter	Type	Description
id	Int	Numeric value associated with the entry to check.

Returns	Description
Bool	True if there is an entry corresponding to the provided ID, false otherwise.

Properties¶

Name	Type	Description
numSelectedEntries	Int	(Read-only) How many entries are currently selected on this list.
selectedEntries	[List Entry]	(Read-only) Array containing the entries selected on this list.
entryHeight	Uint8	Height for each displayed entry in interface units.
entryIconScale	Uint8	Scaling factor applied to icons for entries, where `1` represents `1%`. Defaults to `100`.
dropdownButtonOffset	Uint8	Horizontal offset applied to this list's dropdown button. Only used by dropdown lists.
dropdownButtonSize	Uint8	Dimensions used for the dropdown button. Only used by dropdown lists.
dropdownMaxVisibleEntries	Uint8	How many entries can be displayed on the dropdown. Controls whether the list is displayed as a dropdown or not - if it's a non-zero value, the list is displayed as a dropdown.
isDropdown	Bool	(Read-only) Whether the list is displayed as a dropdown.
maxSelected	Uint8	Sets the maximum number of selected entries at any one time. Does not affect dropdowns. May deselect entries to ensure the current selection does not exceed the new limit.
entries	[List Entry]	(Read-only) Array containing all entries on this list.
contentMargin	ui.Margin	(Modifiable Contents) Offsets used to determine the inner content area for this component.
headerMargin	ui.Margin	(Modifiable Contents) Offsets used to determine the inner content area for this component's dropdown header. Only used by dropdown lists.
scrollbar	ui.ScrollBar	(Modifiable Contents) Scroll bar proprties used when vertical scrolling is required.
entryText	ui.TextData	(Modifiable Contents) Text properties used when displaying entries for this list.
entrySprite	ui.SpriteData	(Modifiable Contents) Sprite properties used for the background.
buttonSprite	ui.SpriteData	(Modifiable Contents) Sprite properties used for the dropdown's button. Only used by dropdown lists.
headerSprite	ui.SpriteData	(Modifiable Contents) Sprite properties used for the dropdown's header. Only used by dropdown lists.

Custom Visuals¶

Using custom or plugin-provided sprites is supported, however the provided sprites used for the header and button must represent a spritesheet containing all of the potential states in a vertical layout using the following order - default, mouseover, dropdown open, disabled.
